Control & Vision Systems

Systems for metal packaging

From the coated and lithographed sheet down to the finished product, SACMI has developed the most complete range of Computer Vision systems on the market for Quality Control of the Metal Packaging.
Every stage in the manufacturing of crown caps, aluminium caps and metal cans for food, beverage, industrial and aerosol applications can be inspected with the utmost accuracy and efficiency thanks to the use of patented solutions designed taking into account the peculiarities the reflectivity of the material and the different shapes of the products.

Video

OUR VISION SYSTEMS FOR METAL PACKAGING

Discover our range of products and solutions by clicking on the relevant box

INSPECTION OF CROWN CAPS

Vision systems and inspection machines for crown caps

Integrated into SACMI lining machines or as stand-alone modules, vision systems for crown cap inspection offer the highest performance in terms of defect identification and quality assurance. For off-line inspection needs, the CAT300 allows analysing crown caps at speeds of up to 180,000 caps per hour.

go to the section Vision for closures

INSPECTION OF ALUMINIUM CAPS

Vision systems and inspection machines for aluminium caps

Integrated into SACMI lining machines or as stand-alone modules, vision systems for aluminium cap inspection offer the highest performance in terms of defect identification and quality assurance.
CHS module that applies 7 high-resolution cameras, it is possible to inspect the inside, outside and side wall of the caps with the utmost precision; in this way, manufacturers can guarantee the highest quality to their end customers

go to the section Vision for closures

INSPECTION OF FOOD CANS

Download the brochure

A wide range of vision systems to control every stage of can production, from the painted and lithographed sheet to the finished product

Watch the video

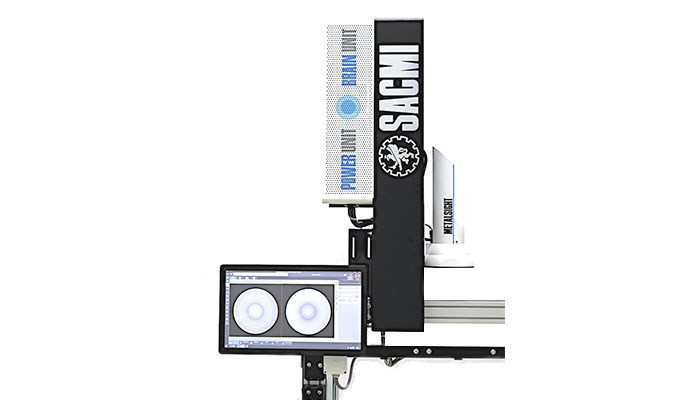

METALSIGHT

“ALL-IN-ONE” VISION SYSTEM FOR QUALITY CONTROL OF BOXES AND LIDS

MetalSight is the brand new “All-In-One” vision system for quality control of boxes and lids. Based on the new Brain Unit and Power Unit, it has been designed for flexible and fast Checkpoint changeover, so the same unit can inspect a wide range of lids, capsules and cans. Quick and easy to install on any new or existing conveyor, it can be equipped with several options, including automatic Checkpoint position adjustment and the Failsafe Rejection System (FRS), which controls correct ejection of defective parts.

* replaces Ulysse

Info request

iCanEnd

Multi-camera and multi-line vision system for metal lid inspection

Thanks to the innovative patented Chrometriq illuminator, the vision systems of the iCanEnd family can capture three or four images with different lighting. Coupled with ultra-high resolution colour cameras (up to 5M pixels), iCanEnd improves visibility of all defects by reducing false rejects. It can control up to four parallel and independent production lines.

Video Info request

iCan

Vision system for Quality Control of the inside of cans

iCan is a new family of Vision Systems for Quality Control inside food cans. Available with one or two cameras, with manual or automatic lifting system. Suitable for cans with a diameter of up to 200 mm and a height of up to 260 mm

Info request

CANCHECK360

3D VISION SYSTEM FOR QUALITY CONTROL OF DECORATIONS AND SEAMING

The CANCHECK360 vision system applies CVS360-3D technology to accurately reconstruct a 3D object into a 2D image, eliminating any distortion that may arise from object position, perspective, optics or surface reflectivity. This allows two key functions to be performed: checking for seaming defects or inspecting the decoration or labelling.

Info request

INSPECTION OF BEVERAGE CANS

Download the brochure

iCanEnd

Multi-camera and multi-line vision system for metal lid inspection

Thanks to the innovative patented Chrometriq illuminator, the vision systems of the iCanEnd family can capture three or four images with different lighting. Coupled with ultra-high resolution colour cameras (up to 5M pixels), iCanEnd improves visibility of all defects by reducing false rejects. It can control up to four parallel and independent production lines.

Video Info request

ELIOSCAN

Vision system for Quality Control of beverage can decoration

Based on the SACMI CVS360-3D technology, ELIOSCAN can inspect decoration in cans and jars, at a speed of up to 2,500 pieces/min. Equipped with an innovative patented illuminator capable of reducing reflections, it uses 4 colour cameras of 5M pixels each, for a total of 20M pixels of acquired and processed image. ElioScan can identify all major decoration defects such as cut blankets, out-of-register, colour-tone deviations, decoration defects, black spots, colour streaks and more.

Info request

iCan beverage

VISION SYSTEM FOR QUALITY CONTROL OF THE INSIDE OF BEVERAGE CANS

iCan Beverage is a Vision System for Quality Control of the interior of beverage cans. It can be configured with two, three or four cameras, depending on the required inspection accuracy. In addition, it can be equipped with an automatic changeover system and FRS reject control. The Neck Checkpoint is equipped with special optics that improve defect detection. ICAN Beverage is suitable for cans with diameters up to 70 mm and heights up to 190 mm.

Info request

LABELCHECK360

Vision system for Quality Control of labelling and seaming

Based on the SACMI CVS360-3D technology, LABELCHECK-360 can carry out the Quality Control of jar labelling and seaming. The CVS360 software module allows the perfect reconstruction of the external side wall, compensating for any distortion due to optical, perspective or spatial position deformation. Perfect reconstruction is the key to the success of LABELCHECK-360. Designed to work mainly in a dry environment, it is characterised by an anodised and painted aluminium structure.

Info request

INSPECTION OF COATED AND DECORATED SHEETS

Download the brochure

ECLIPSIM-COAT

Vision system for Quality Control of coated sheets

Eclipsim-Coat is the new generation of Vision Systems for Quality Control of coated sheets. Through the use of high resolution linear cameras and the patented SACMI Chrometriq illuminator, Eclipsim acquires the image of the entire sheet and analyses it in real time and at line speed, guaranteeing the detection of all defects typical of the painting process.

Info request

ECLIPSIM DECO-DIGIT

VISION SYSTEM FOR QUALITY CONTROL OF THE DECORATION ON METAL SHEETS DECORATED WITH SACMI DMD DIGITAL PRINTING MACHINE

ECLIPSIM-DECO DIGIT is the new generation of Vision Systems for Quality Control of digital decoration on metal sheets. It applies a high-resolution colour camera and specific illuminators for reflective and diffusing colours, allowing the detection of major defects such as colour deviations (ΔE), colour intensity variation between printheads, clogged nozzles and others.

Info request

ISPEZIONE DI AEROSOL

Download the brochure

METALSIGHT

“ALL-IN-ONE” VISION SYSTEM FOR QUALITY CONTROL OF BOXES AND LIDS

MetalSight is the brand new “All-In-One” vision system for quality control of boxes and lids. Based on the new Brain Unit and Power Unit, it has been designed for flexible and fast Checkpoint changeover, so the same unit can inspect a wide range of lids, capsules and cans. Quick and easy to install on any new or existing conveyor, it can be equipped with several options, including automatic Checkpoint position adjustment and the Failsafe Rejection System (FRS), which controls correct ejection of defective parts.

* replaces Ulysse

Info request

iCanEnd

Multi-camera and multi-line vision system for metal lid inspection

Thanks to the innovative patented Chrometriq illuminator, the vision systems of the iCanEnd family can capture three or four images with different lighting. Coupled with ultra-high resolution colour cameras (up to 5M pixels), iCanEnd improves visibility of all defects by reducing false rejects. It can control up to four parallel and independent production lines.

Video Info request

Inspection of lug & pt closures

Download the brochure

METALSIGHT

“ALL-IN-ONE” VISION SYSTEM FOR QUALITY CONTROL OF BOXES AND LIDS

MetalSight is the brand new “All-In-One” vision system for quality control of boxes and lids. Based on the new Brain Unit and Power Unit, it has been designed for flexible and fast Checkpoint changeover, so the same unit can inspect a wide range of lids, capsules and cans. Quick and easy to install on any new or existing conveyor, it can be equipped with several options, including automatic Checkpoint position adjustment and the Failsafe Rejection System (FRS), which controls correct ejection of defective parts.

* replaces Ulysse

Info request

iCanEnd

Multi-camera and multi-line vision system for metal lid inspection

Thanks to the innovative patented Chrometriq illuminator, the vision systems of the iCanEnd family can capture three or four images with different lighting. Coupled with ultra-high resolution colour cameras (up to 5M pixels), iCanEnd improves visibility of all defects by reducing false rejects. It can control up to four parallel and independent production lines.

Video Info request

DECOCAP360-3D

Vision system for Quality Control of decoration in the flat bottom and sidewalls of lugged closures

DECOCAP360-3D is the first Vision System in the world for controlling the decoration at the bottom and side wall of lugged caps. Complete with 5 cameras and the innovative CVS360-3D module, it allows the 3D profile of lugged caps to be developed into a 2D image, compensating for any deformation that could result from perspective, optics and spatial position. Thanks to the perfect reconstruction of the perimeter area, the system allows identifying

Info request

LUGGEDCAP360-3D

Vision system for Quality Control of flat bottom and sidewall in the product side of lugged closures

LUGGEDCAP360-3D is the world's first Vision System for checking the internal back and side wall of caps, with or without flaps. Complete with 5 cameras and the innovative CVS360-3D module, it allows the 3D lid to be developed in a 2D image, compensating for any potential distortion effect that could derive from perspective, optics and spatial position.

Info request
