SRB

STAINLESS STEEL SLIP STORAGE TANKS

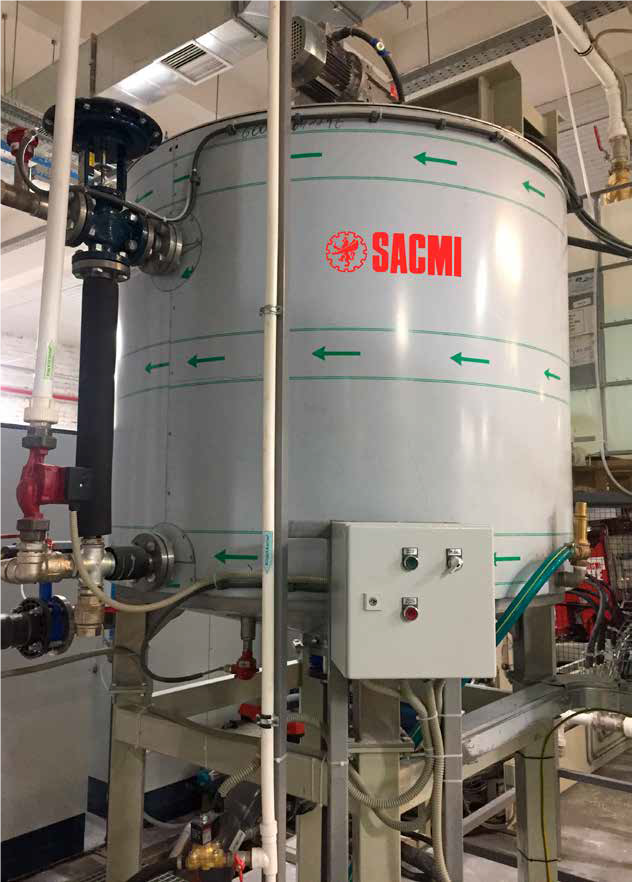

SACMI’s SRB tanks are designed for optimum storage of the slip to be supplied to the casting plants.
Made of stainless steel and lined with insulating material, the SRB are equipped with a heating system (water or electrical heating) to guarantee accurate slip temperature regulation. Furthermore, a stirrer is provided to prevent sedimentation of the solid particles, thus ensuring the slip is kept homogenous and ready to use at any time.


Technical specifications SRB 015 SRB 024
Overal dimensions 1520x1520x2690 mm 1720x1720x2910 mm
Tank volume 1,5 m³ 2,4 m³
Temperature adjustment range 35-45 °C 35-45 °C
Stirrer revs per min 14 11
Installed power 1,1 kW 1,5 kW
