用于餐具生产线的雾化器

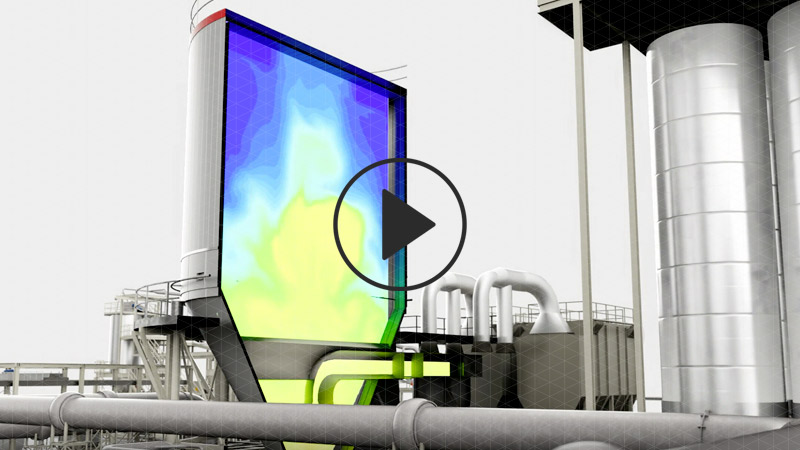

ATM雾化器对滑液进行喷雾干燥，以获得用于餐具生产的等静压的理想粉末。

观看视频

观看视频

ATM TABLEWARE RANGE:

TECHNICAL DATA ATM006 ATM012 ATM018 AMT036 ATM052 ATM065
Nominal evaporating capactity (at 0 mslm) l/h 330 660 990 1.980 2.860 3.580
Atomised production (@ 36% H2O) kg/h 620 1.240 1.860 3.730 5.380 6.730
Nominal installed heat output kcal/h 540.000 1.050.000 1.500.000 3.000.000 4.300.000 5.500.000
Air temperature at tower inlet °C 400÷600 400÷600 400÷600 400÷600 500÷600 500÷600
Outlet air temperature °C 70÷140 70÷140 70÷140 70÷140 70÷140 70÷140
Atomised powder temperature °C 40÷70 40÷70 40÷70 40÷70 40÷70 40÷70
Moisture atomised powder % 2÷3 2÷3 2÷3 2÷3 2÷3 2÷3
Specific heat consumption kcal/l H2O 1000÷1150 950÷1100 950÷1100 950÷1050 950÷1050 950÷1050
Number of lances n. 3 6 7 9 10 12
Nozzles - maximum number with LANCE n. 6 12 14 18 20 24
Cyclone separators n° 1 1 1 2 2 2
Installed electrical power rating kW 14,0 22,5 35,5 63,5 90,0 125,0

MATERIALS: ATM atomisers are specifically configured for use in dishware preparation to reduce the risk of iron contamination.
